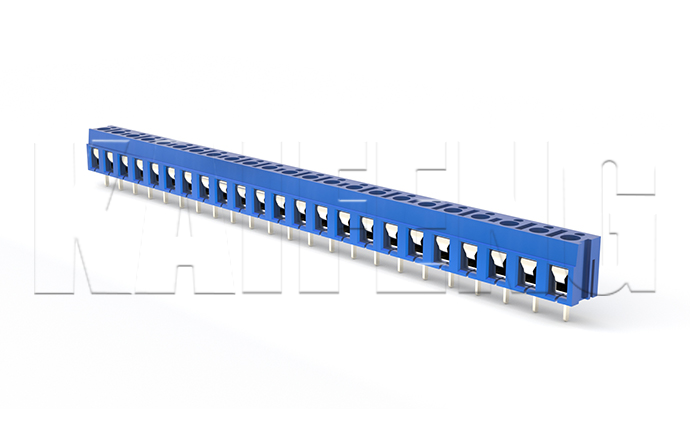

PCB Terminal Block KF705A-7.50mm
Screws：M2.5 Steel Zinc plated,"-"slot type 丨 Select：- 丨 Pin header：Copper alloy，Tin plated 丨 Housing：PA66, UL94V- 0 丨 Electrical：ULIEC 丨 Rated voltage：300V-450V 丨 Rated current：12A-24A 丨 Contact resistance：20m?(Max) 丨 Insulation resistance：500MΩ/DC500V 丨 Withstanding voltage ：AC2500V/1min 丨 Wire range：22-14AWG 2.5mm2 丨 MechanlicalTemp.rang：-30℃～+120℃ 丨 Max.soldering：+250℃,5sec
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Product Drawing Material Electrical Mechanical Packaging
Product Drawing
Kaifeng Electron
Material
  • Screws
    M2.5 Steel Zinc plated-slot type
  • Housing
    PA66, UL94V-0
  • Reed
    Phosphor bronze Ni plated or stainless steel
  • Pin header
    Brass, Tin plated
Electrical
  • Rated voltage
    300V UL丨 450V lEC
  • Rated current
    12A UL丨 24A lEC
  • Contact resistance
    20m?(Max)
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC2500V\1Min
  • Wire range
    22-14AWG 2.5mm2
Mechanical
  • Temp Range
    LOW-30℃ 丨TOP+120℃
  • MAX Soldering
    +250℃，5sec
  • Torque
    0.4N.m 3.5Lb.in
  • Strip length
    4.5-5mm
Packaging
  • Net weight
    xg
  • SPQ
    12pcs
  • Packing method
    Bagged
  • MOQ
    12pcs
  • Packing method
    Boxed45cm*28cm*27cm
