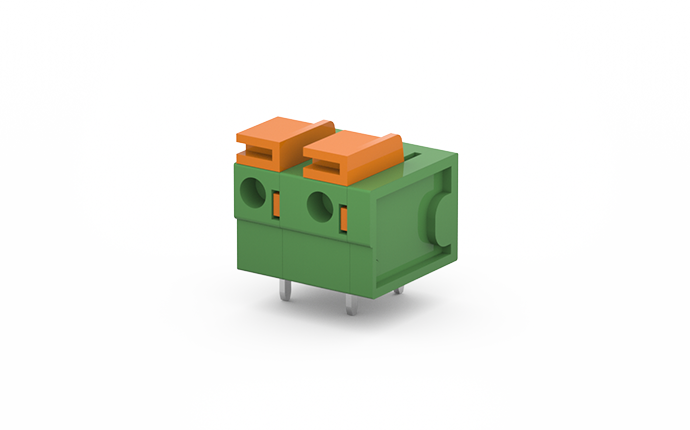

PCB Terminal Block KF142R-7.62mm
Material：①Button：PA66，UL94V-0②Cover：PA66，UL94V-0③Button：PA66，UL94V-0④Reed：Stainless steel⑤Pin header：Brass，Tin platedElectricalULIECRated voltage300V 250V Rated current10A15AContact resistance20mΩInsulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range22-14AWG 1.5mm2MechanlicalTemp.rang-40℃～+105℃ Max.soldering+250℃,5sec
Color
  • Kaifeng Electron
Line count
  • 01P
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Product Drawing Material Electrical Mechanical Packaging
Product Drawing
Kaifeng Electron
Material
  • Button
    PA66，UL94V-0
  • Cover
    PA66，UL94V-0
  • Button
    PA66，UL94V-0
  • Reed
    Stainless steel
  • Pin header
    Brass, Tin plated
Electrical
  • Rated voltage
    300V UL丨 250V lEC
  • Rated current
    10A UL丨 15A lEC
  • Contact resistance
    20mΩC
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC2000V\1Min
  • Wire range
    22-14AWG 1.5mm2
Mechanical
  • Temp.rang
    LOW-40℃ 丨TOP+105℃
  • Max.soldering
    +250℃，5sec
  • Strip length
    10mm
Packaging
  • Net weight
    xg
  • SPQ
    12pcs
  • Packing method
    Bagged
  • MOQ
    12pcs
  • Packing method
    Boxed45cm*28cm*27cm
