Kaifeng Electron
Kaifeng Electron
Barrier Terminal Block KF1000A
Material：M3.0 Steel Zinc platedTerminal：Brass， Ni platedHousing: PA66,UL94V-0Electrical--Rated voltage750V -Rated current32A-Insulation resistance500MΩ/DC500VWithstanding voltage AC2000V/1minWire range22-12AWG 4.0mm2MechanlicalTemp.rang-40℃～+105℃ Torque1.5N.m 15.3kg.cm
Color
  • Kaifeng Electron
Line count
  • 05P
Product Drawing Material Electrical Mechanical Packaging

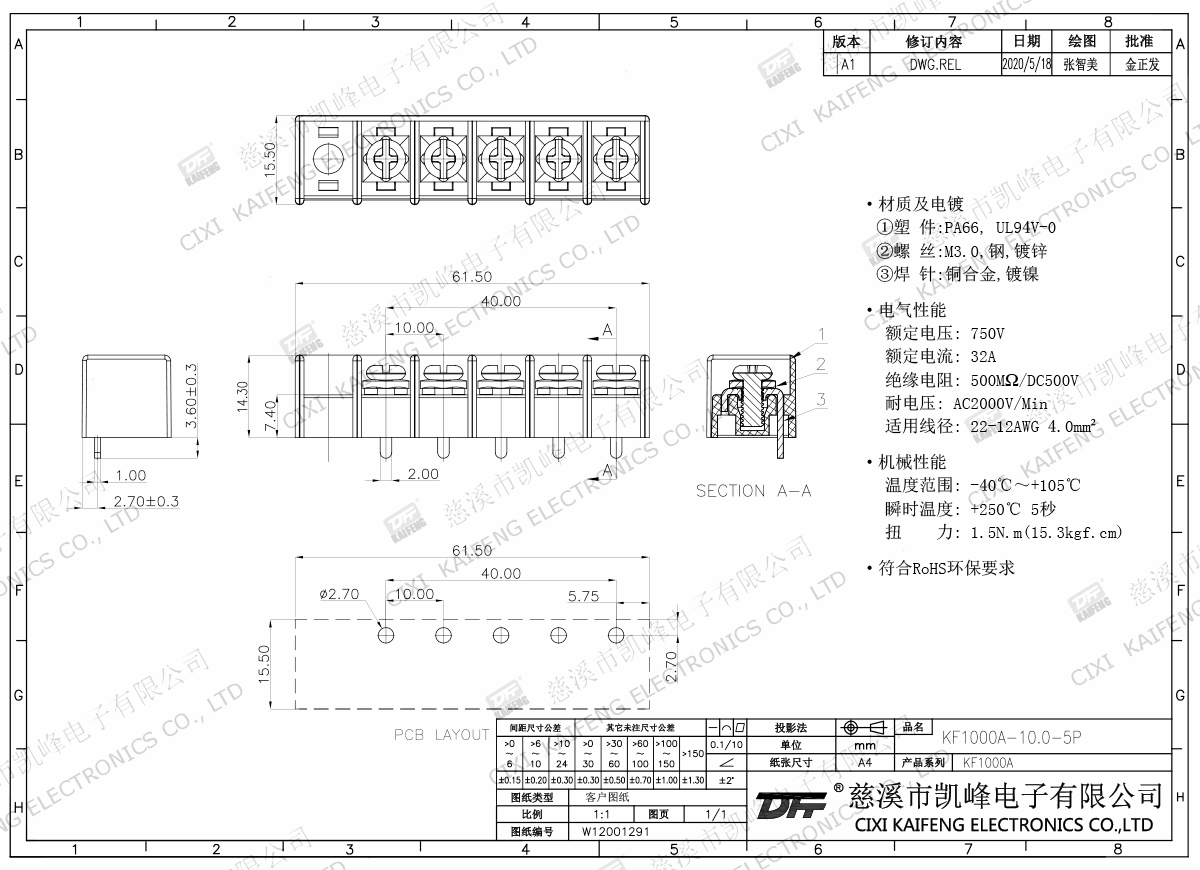

Product Drawing
Kaifeng Electron
Material
  • Screws
    M3.0 Steel Zinc plated
  • Terminal
    Brass，Plated
  • Housing
    PA66, UL94V- 0
Electrical
  • Rated voltage
    450V UL丨 - lEC
  • Rated current
    32A UL丨 - lEC
  • Insulation resistance
    500MΩ\DC500V
  • Withstanding voltage
    AC2000V\1Min
  • Wire range
    22-12AWG 4.0mm2
Mechanical
  • Wire range
    LOW-40℃ 丨TOP+105℃
  • Torque
    1.5N.m 15.3Lb.in
Packaging
  • Net Weight
    xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
