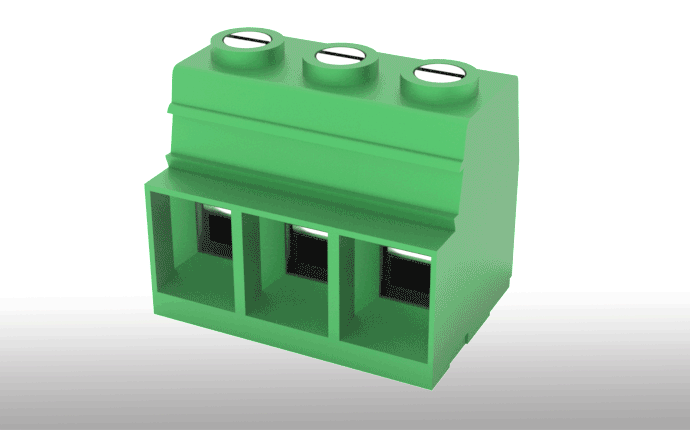

PCB Terminal Block KF137-15.00mm
PCB Terminal Block MATERIAL：Screws:M5steel,Ni plated材料:Brass, Tin platedPin header:Brass, Tin platedHousing:PA66UL94V-0·ELECTRICALRated voltage:600VRated current:90AContact resistance:20m?Insulation resistance:5000M?\1000VWithstanding voltage :AC300V\1MinWire range:22-2AWG25mm2·MechanicalTemp.rang:-40℃∽+105℃Max.soldering:+250 ℃ / 5S torque:2Nm(17.54lb.in)Strip length:15-18mm
Color
  • Kaifeng Electron
Line count
  • 02P
  • 03P
  • 04P
  • 05P
  • 06P
  • 07P
  • 08P
  • 09P
  • 10P
  • 11P
  • 12P
  • 13P
  • 14P
  • 15P
  • 16P
  • 17P
  • 18P
  • 19P
  • 20P
  • 21P
  • 22P
  • 23P
  • 24P
Product Drawing Material and Plating Electrical properties Product packaging

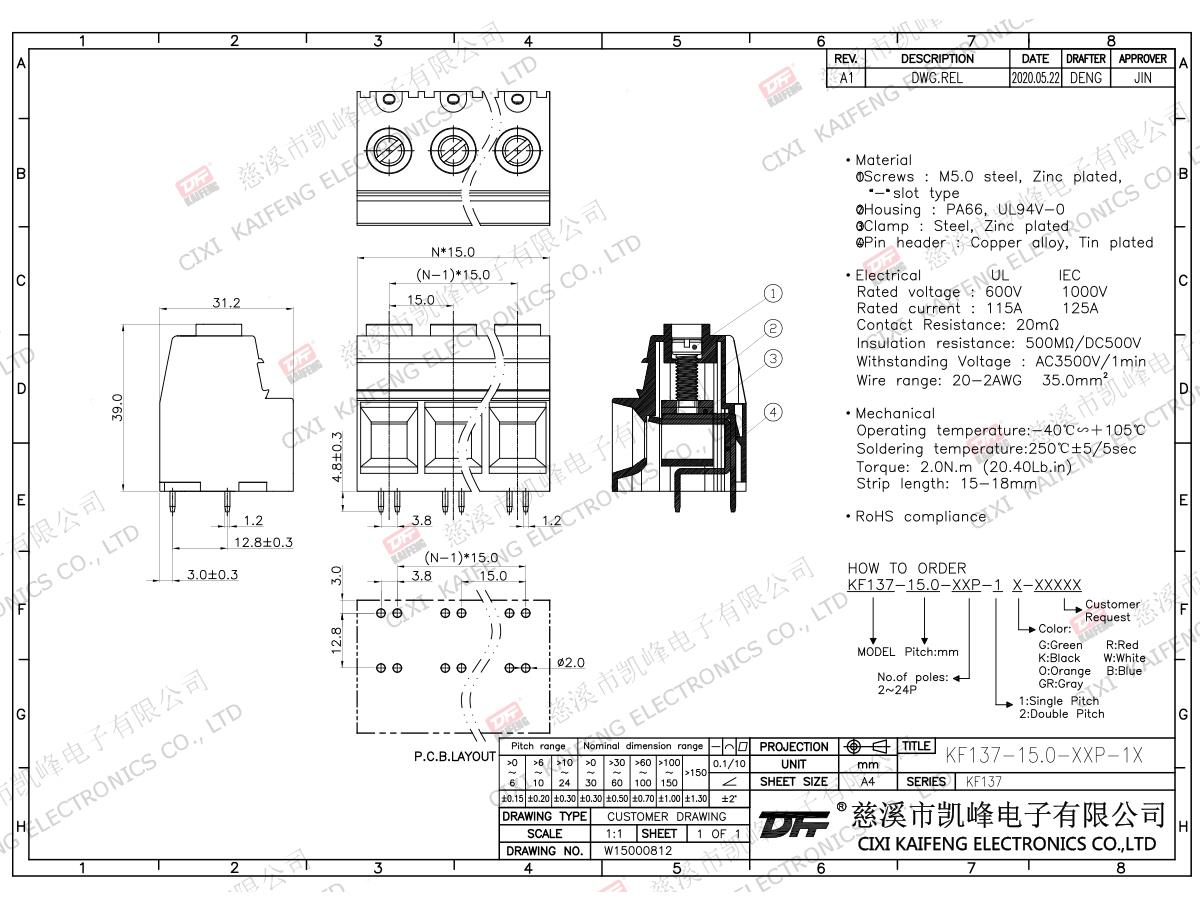

Product Drawing
Kaifeng Electron
Material and Plating
  • Screws
    M5.0 steel，Zinc plated ，“-"slot type
  • Housing
    PA66，UL94V-0
  • Clamp
    Steel,Zinc plated
  • Pin header
    Copper alloy, Tin plated
Electrical properties
  • Rated voltage
    600V/UL 1000V/IEC
  • Rated current
    115A/UL 125A/IEC
  • Contact Resistance
    20MΩ
  • Insulation resistance:
    500MΩ/DC500V
  • Withstanding
    AC3500V\1Min
  • Wire range
    20-2AWG 35.0mm2
Product packaging
  • Weight
    Xg
  • SPQ
    12pcs
  • Packaging
    Ziploc
  • MOQ
    12pcs
  • Packaging
    Box45cm*28cm*27cm
